Air conditioners are mechanical systems that move heat from indoor air to the outdoors using a network of parts that include thermal components and fluid plumbing. This guide explains the main air conditioner parts, how the refrigerant cycle drives heat transfer, and why plumbing elements like refrigerant lines and condensate drains are important to both performance and water-damage prevention. Readers will learn the role of each core component, stepwise refrigerant flow, and plumbing-focused maintenance steps that homeowners can safely perform. The guide also maps common plumbing failure modes, offers troubleshooting checklists, and previews practical maintenance schedules. Below you’ll find detailed sections on main AC parts, the refrigerant cycle (with a refrigerant comparison table), condensate management (with a condensate solutions table and checklist), ancillary components impacting airflow and IAQ, plumbing-related troubleshooting (with a quick-reference EAV troubleshooting table), and a focused Oz Air group perspective on installation and maintenance. Throughout, target keywords such as air conditioner parts, refrigerant lines, condensate drain line cleaning, and AC plumbing issues appear in context to support practical understanding and action.

‍

What Are the Main Parts of an Air Conditioner and How Do They Work?

An air conditioner is made of four core components that together transfer heat: an evaporator coil, a compressor, a condenser coil, and an expansion device. The evaporator coil absorbs heat from indoor air as refrigerant evaporates; the compressor raises refrigerant pressure and temperature; the condenser rejects heat outdoors as refrigerant condenses; and the expansion device meters refrigerant into the evaporator at low pressure to repeat the cycle. These components operate as a closed-loop refrigeration system where pressure differentials and phase changes drive heat movement, yielding cooler air and moisture removal as condensate. Understanding each part’s function clarifies why maintenance of both mechanical and plumbing elements is essential to reliable cooling and water control.

This section lists the primary parts and concise functional definitions that are suitable for quick reference and featured snippets.

1. Evaporator coil: Absorbs indoor heat and causes moisture to condense on coil surfaces.
2. Compressor: Pressurises refrigerant to enable heat rejection at the condenser.
3. Condenser coil: Releases heat to outdoor air and condenses refrigerant vapor.
4. Expansion device: Regulates refrigerant flow and pressure entering the evaporator.
5. Refrigerant lines: Transport refrigerant between indoor and outdoor units.
6. Condensate drain pan and drain: Collect and route condensed water away from the unit.

These definitions describe how components interrelate and set up the next section: a stepwise look at the refrigerant cycle that ties these parts together.

‍

What Is the Role of the Evaporator Coil in Cooling and Condensate Formation?

The evaporator coil functions as the indoor-side heat exchanger where liquid refrigerant absorbs sensible and latent heat, causing vaporisation and surface condensation. As warm return air passes across the coil, the coil surface temperature falls below the air dew point and moisture condenses into liquid that drips into the drain pan. Proper airflow and clean coil surfaces are necessary to maintain efficient heat transfer; restricted airflow or dirty fins reduce heat pickup and can cause coil icing or excess condensate. Homeowners should visually inspect the access panel and look for water pooling, frost, or reduced airflow, which indicate coil or airflow problems requiring cleaning or technician attention.

Maintaining good air filter discipline supports coil function and reduces condensate problems by preventing dust buildup that insulates coil surfaces and traps moisture, which leads naturally into compressor function and its effect on the cycle.

‍

How Does the Compressor Regulate Refrigerant Flow and Pressure?

The compressor acts as the system pump: it draws low-pressure refrigerant vapor from the evaporator and compresses it into high-pressure, high-temperature vapor for the condenser to cool. Types of compressors such as scroll, reciprocating, and rotary differ in moving parts and service approaches; the compressor choice affects repair options and efficiency. Symptoms of compressor stress include loud or unusual noise, reduced cooling capacity, and rapid cycling; these signs often require certified diagnosis because compressors involve high-pressure refrigerant and electrical systems. Preventive measures include ensuring clean coils, correct refrigerant charge, and proper electrical supply to reduce compressor wear and help maintain stable refrigerant flow through the rest of the plumbing.

Compressor reliability directly impacts refrigerant line condition and pressure differentials, which leads into the next section: a detailed explanation of the refrigerant cycle and linework.

‍

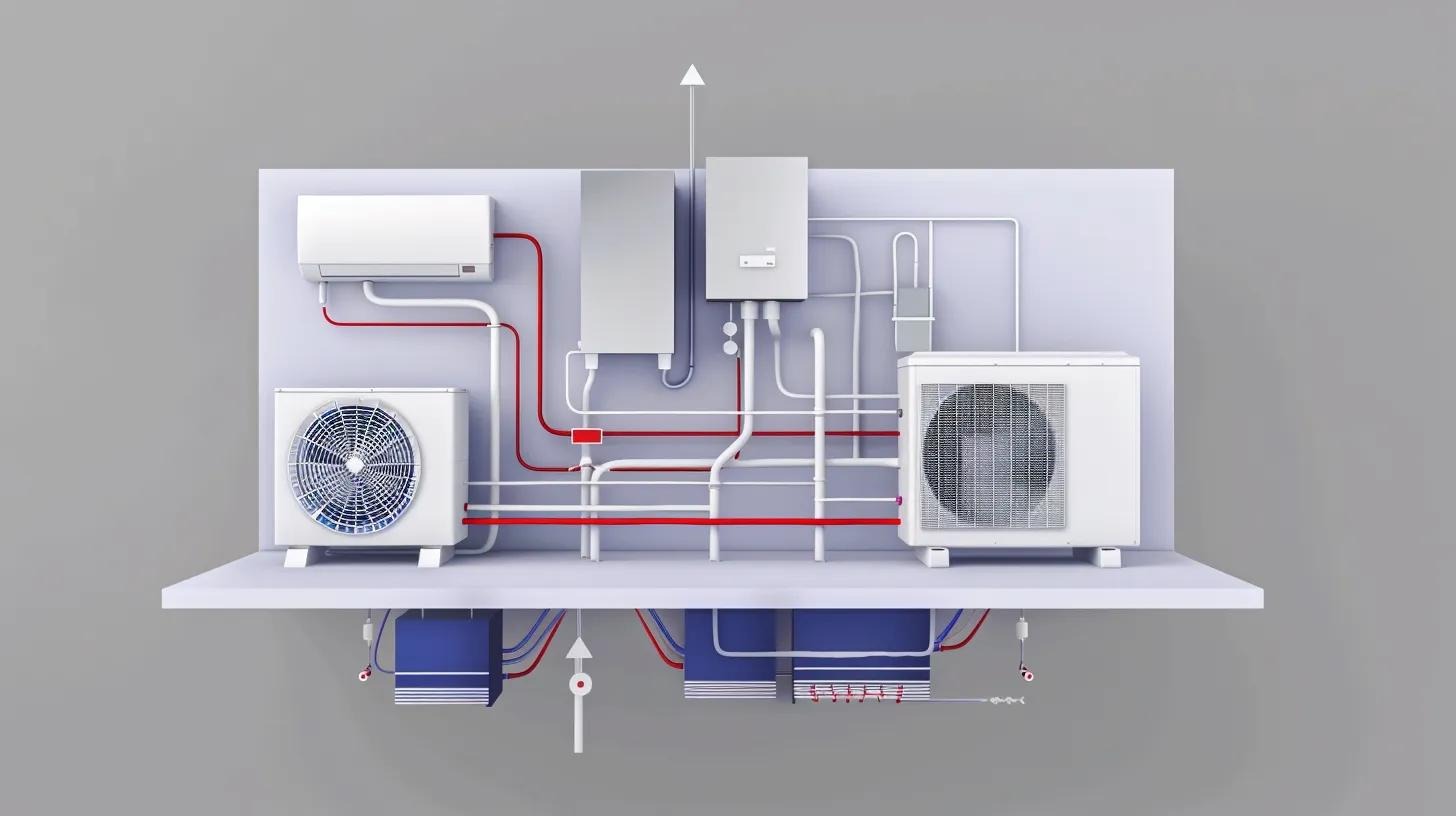

How Does the Refrigerant Cycle Operate Within an AC System?

The refrigerant cycle moves heat via phase changes driven by pressure differentials: evaporation indoors removes heat, compression raises pressure, condensation outdoors expels heat, and expansion lowers pressure before evaporation repeats. This four-step sequence such as evaporation, compression, condensation and expansion forms a continuous loop that transfers latent heat and enables temperature control. Proper routing, insulation, and secure fittings of refrigerant lines are plumbing concerns because leaks, poor brazing, or inadequate insulation degrade cycle efficiency and can lead to moisture or corrosion problems. The next paragraphs focus on refrigerant line materials and refrigerant types to show how plumbing and chemical choices affect system performance and safety.

1. Evaporation: Low-pressure liquid refrigerant absorbs indoor heat and becomes vapor.
2. Compression: Compressor raises vapor pressure and temperature for heat rejection.
3. Condensation: High-pressure vapor releases heat at the condenser and liquefies.
4. Expansion: Metering device reduces pressure, cooling refrigerant before it re-enters the evaporator.

This stepwise view frames the importance of proper refrigerant line installation and safe handling practices for each stage of the cycle.

‍

What Are Refrigerant Lines and How Are They Installed and Maintained?

Refrigerant lines typically copper tubing, connect indoor and outdoor components and carry refrigerant in liquid and vapor forms; they must be insulated, sloped where applicable, and protected from physical damage. Proper installation uses brazed or flare fittings chosen by system design, correct nitrogen purge during brazing to avoid oxidation, and adequate insulation on the suction line to prevent sweating and energy loss. Homeowners can watch for visible oil stains, hissing sounds, or excessive frosting on lines as indicators of leaks or insulation failure; routine checks include inspecting insulation integrity and visible fittings. Certified technicians should perform leak detection, pressure testing, and any brazing or recharging because these tasks involve pressurised refrigerants and require proper tools and certification.

Visual inspection of line insulation and secure routing reduces systemic stress and leads naturally to choosing appropriate refrigerant types for systems.

‍

What Types of Refrigerants Are Used and Why Is Proper Handling Important?

Modern refrigerants vary in global warming potential (GWP), pressure characteristics, and use cases; selecting the right refrigerant balances performance, safety, and environmental considerations. Proper handling is important because refrigerant loss reduces efficiency and can harm the environment; charging, leak repair, and reclamation must be done by certified professionals following regulatory guidance. Homeowners should watch for loss-of-cooling symptoms or oily residue near fittings as possible leak signs and avoid attempting recharge without certification. The table below compares common refrigerant types at a high level to highlight differences that matter for plumbers and HVAC technicians.

Different refrigerants offer trade-offs in pressure, environmental impact, and typical applications.

‍

‍

This high-level comparison shows why refrigerant selection and certified handling are central to both performance and regulatory compliance and sets up the plumbing-focused discussion on condensate management.

‍

What Plumbing Components Manage Condensate and Prevent Water Damage?

Condensate management is a plumbing subsystem within HVAC that includes the evaporator drain pan, primary gravity drain, condensate trap, secondary (overflow) pan, and condensate pumps where gravity discharge is not possible. These components collect, route, and dispose of condensed water; correct slope, trap configuration, and termination points prevent backups that cause water damage.

Homeowner-visible signs of problems include water stains on ceilings, damp insulation, or dripping near the air handler; addressing those symptoms involves checking pan condition, clearing clogs, and ensuring overflow sensors and secondary drains are installed. The EAV table below compares condensate solutions by failure modes, maintenance frequency, and homeowner checks to guide practical decisions on upgrades and servicing.

The table below helps homeowners compare common condensate solutions and typical issues.

‍

‍

This comparison clarifies which components most commonly fail and what homeowner checks reduce water-damage risk, leading into troubleshooting methods for common condensate drain problems.

‍

How Does the Condensate Drain Pan and Drain Line Work Together?

The primary drain pan sits beneath the evaporator coil to capture condensed water and directs it to the drain line, which should slope to a safe termination point; this basic plumbing removes moisture produced during cooling cycles. A properly sized secondary pan and overflow sensor provide redundancy where pan leakage could damage building components, and a trap may be required to prevent sewer gas entry depending on local plumbing practices. Materials for drain lines are typically PVC or CPVC for gravity drains and flexible tubing for pump discharge, and installers must avoid sags and low spots that trap water. Homeowner checks include looking for standing water in pans, confirming steady discharge at termination points, and listening for pump noise, which segue into troubleshooting when drains clog or pumps fail.

Routine pan inspections and understanding drain routing help homeowners catch early signs of failure and prepare for safe corrective action.

‍

What Are Common Condensate Drain Problems and How Can They Be Troubleshot?

Clogs from algae and biofilm, sagging drain lines that trap water, frozen coils producing excess condensate, and condensate pump failures are frequent failure modes that produce leaks and odors. Homeowner troubleshooting starts with visual inspection: clear visible clogs by flushing the drain with water, use a wet/dry vacuum at the drain end to pull a clog, and test condensate pump float operation by carefully adding water to the pan. Avoid pouring harsh chemicals without guidance, an appropriate diluted disinfectant can control algae but should be used sparingly and safely; otherwise, schedule a professional drain cleaning. If water persists, shows brown/black biofilm, or damage is evident, call a qualified technician because more invasive cleaning or pan replacement may be needed.

A succinct homeowner triage checklist follows to guide immediate, safe actions before professional service is required.

• Inspect the pan and visible drain lines for standing water or overflow stains.
• Flush the drain with warm water to test flow and dislodge minor clogs.
• Use a wet/dry vacuum at accessible terminations to remove obstructions.
• Test condensate pump operation by adding water to the pan and listening for activation.

These triage steps help determine whether the issue is a simple homeowner fix or requires technician intervention, which transitions into ancillary component roles that affect condensate formation.

‍

What Are the Functions of Ancillary AC Components Like Air Filters, Blowers, and Thermostats?

Ancillary components like air filters, blowers, ductwork, and thermostats directly influence airflow, indoor air quality (IAQ), and the rate of condensate production by controlling how much moisture-laden air reaches the evaporator. Filters remove particulate matter and come in different efficiencies (MERV ratings); dirty filters reduce airflow, lower evaporator temperature, and can cause coil icing that increases condensate when the coil thaws. Blower motors (PSC vs ECM) regulate air movement and static pressure; efficient blowers sustain proper face velocity across the coil for consistent moisture capture and evaporation. Thermostat control strategies (setpoints, setback schedules, and smart features) determine run time and therefore influence dehumidification; adequate runtime improves moisture removal, while rapid short cycling can reduce condensate removal efficiency.

Balanced airflow and proper control strategies minimise stress on plumbing systems and enhance overall system reliability, connecting naturally to a closer look at filters/blowers and thermostat impacts below.

‍

How Do Air Filters and Blowers Affect Air Quality and System Efficiency?

Air filters rated by MERV capture particles at varying sizes; higher MERV filters improve IAQ but can increase static pressure if the blower or filter cabinet isn’t sized appropriately. A blower that maintains consistent airflow reduces coil frosting and uneven condensate formation; conversely, underpowered or malfunctioning blowers allow low air velocity, dropping coil surface temperatures and increasing the risk of ice and subsequent water surges when thawed. Homeowners should replace common disposable filters monthly to quarterly depending on occupancy and filter type, and inspect blower access panels for dust accumulation annually. Proper filter selection and blower maintenance preserve heat-exchange efficiency, which reduces stress on condensate plumbing and supports the thermostat’s humidity control role.

These operational links illustrate why filtration and airflow management are plumbing-relevant and lead into thermostat strategies.

‍

What Role Does the Thermostat Play in Regulating AC Performance?

Thermostats regulate setpoint, cycle frequency, and sometimes humidity control; longer run cycles at moderate setpoints typically yield better dehumidification and more predictable condensate management. Programmable and smart thermostats enable runtime optimisation like reducing short-cycling and ensuring adequate on-time to remove indoor moisture, while also providing alerts that can signal HVAC faults. Incorrect thermostat placement or aggressive setback strategies may cause inappropriate cycling, which reduces moisture removal and increases condensate-related issues. Checking thermostat calibration and using sensible setpoint strategies help stabilise runtime and support effective condensate drainage, which in turn reduces the likelihood of water damage and plumbing interventions.

Thermostat behavior therefore has direct consequences for condensate volume and plumbing system demands, creating the need for a focused troubleshooting and prevention section.

‍

What Are Common AC Plumbing Issues and How Can They Be Prevented or Fixed?

Refrigerant leaks, clogged condensate drains, pump failures, and poorly routed drain lines that create sags or traps are common plumbing-related AC problems that cause loss of cooling and water damage. Prevention emphasises proper installation such as correct slope, secure fittings, and appropriate insulation plus routine maintenance like drain flushing, pan inspection, and pump testing. Homeowner triage actions include visual inspection, drain flushing, and pump testing, while detection of refrigerant leaks or brazing repairs requires certified service. The quick-reference troubleshooting EAV table below maps symptoms to likely plumbing causes, homeowner triage steps, and indicators for professional intervention to help prioritise actions.

Use this reference to distinguish when a DIY check is safe versus when certified diagnostics are necessary.

‍

‍

‍

How to Identify and Repair Refrigerant Leaks in Plumbing Lines?

Signs of refrigerant leaks include hissing or bubbling sounds from line joints, sudden loss of cooling capacity, oil stains near fittings, and pressure anomalies on gauges used by technicians. Homeowners can perform safe preliminary checks like to listen for hissing, look for oil residue, and note performance changes but should avoid refrigerant handling or attempting pressurised repairs. Certified technicians use electronic leak detectors, dye injection, and pressure testing to locate and repair leaks, and they follow regulations for recovery and disposal. Because refrigerants are pressurised and subject to environmental rules, repair and recharge must be done by qualified professionals to ensure safety, compliance, and system integrity.

Keeping an eye out for these symptoms enables timely professional intervention and prevents extensive water or equipment damage that can follow prolonged leaks.

‍

What Are Best Practices for Maintaining Condensate Drains and Preventing Water Leaks?

Regular condensate maintenance includes monthly visual checks, quarterly drain flushing, annual professional inspections, and installation of overflow protection where feasible. Recommended homeowner steps are simple: ensure the pan is dry, flush the drain with warm water, use a wet/dry vacuum if flow is restricted, and test condensate pump activation. Use of diluted algaecide or appropriate, manufacturer-recommended cleaners can reduce biological growth, but strong chemicals should be avoided without professional advice. Installing secondary pans, overflow switches, and ensuring proper routing/termination of drain lines completes a preventive strategy that minimises water damage risk and extends equipment life.

These practices, when performed consistently, reduce emergency repairs and complement scheduled professional maintenance that addresses plumbing-critical components.

‍

How Does Oz Air Group Provide Expert Plumbing Insights for AC Installation and Maintenance?

Oz Air group approaches AC installations and maintenance with a plumbing-first mindset that emphasises correct drain routing, secure refrigerant linework, and scheduled fluid-system inspections to prevent leaks and water damage. Our maintenance philosophy focuses on documenting drain line conditions, testing condensate pumps, and verifying insulation and slope on refrigerant lines to reduce recurring failures. For homeowners, Oz Air group recommends a blended schedule: monthly homeowner checks, quarterly basic maintenance (filter and drain checks), and annual professional inspections that include refrigerant pressure testing and pan integrity assessments. These intervals balance homeowner safety with professional diagnostics to manage both condensate and refrigerant systems effectively.

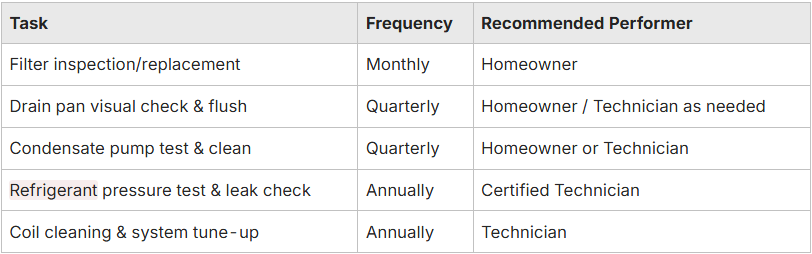

Below is a compact maintenance schedule Oz Air group uses conceptually to guide homeowners on who should perform each task and how frequently.

‍

‍

‍

What Maintenance Schedules Ensure Optimal Performance of AC Fluid Systems?

A practical schedule separates simple homeowner tasks from professional inspections: monthly filter checks and pan observation by homeowners; quarterly flushing and pump testing; and annual certified inspections covering refrigerant charge, leak detection, brazing integrity, and coil cleaning. Record-keeping of these checks helps track recurring issues and supports warranty or insurance claims should damage occur. Time and cost trade-offs depend on system complexity, but consistent preventive maintenance reduces emergency service calls and prolongs component life. Homeowners should document dates and observations and alert technicians to any recurring pan or leak events to prioritise inspection of the plumbing interfaces.

Consistent scheduling and record-keeping both prevent many common failures and inform technician diagnostics when issues arise, leading into a short case-style example of plumbing resolution.

‍

How Has Oz Air Group Resolved Complex Plumbing Issues in AC Systems?

A recent anonymised engagement involved a split system with intermittent ceiling leaks caused by a partially collapsed condensate drain and a failing secondary pump float. Diagnosis began with a visible inspection and dye-assisted flow test to confirm intermittent siphoning and pump failure; Oz Air group replaced the degraded flexible discharge, installed a new pump with correctly sized discharge, and added a secondary overflow pan and float switch for redundancy. The result was immediate elimination of ceiling moisture events and restored reliable discharge; follow-up checks at three months confirmed stable operation and no evidence of water staining. The lessons learned emphasized verifying routing slope, selecting durable discharge materials, and adding mechanical redundancy where gravity drainage is marginal.

‍
